EXH8 Headlamp


II 1G Ex ia op is IIC T4 Ga
II 1D Ex ia op is IIIC T135°C Da

An adjustable hands-free light source for safety and specificity in highly flammable Ex-Zone 0/20 environments for those working around explosive gases, vapours and dust. This headlamp features the patented Advanced Focus System and extended battery life - up to 40 hours.
  • Luminocity
    180 lm
    50 lm
  • Range
    120 m
    65 m
  • Battery
    15 h
    40 h

Special Information

  1. Light Functions

    These settings are a pure, bright delight:

    • Power - high light output for every situation
    • Low Power - economical light for long battery life, glare-free reading and working
  2. Switches

    Turn, press or both - how to switch these Ledlensers on:

    • Magnetic Switch - with two off positions for easy operation while wearing gloves and protective equipment
  3. Special functions

    That special something about this Ledlenser:

    • Ex-Zone 0/20 Suitable - The first headlamp for Ex-Zone 0/20 areas with patented Advanced Focus System
    • Rear Light - A red backlight so that you can also be seen from behind for added safety
    • Adjustable, Washable Headband - With an anti-slip rubber grip
  4. IP-Class

    Safety features of this Ledlenser:

    • IP66 - Dust-proof and protected against powerful water jets
  5. Ex Rating

    Ex and IECEx Compliant:

    • Ex-Zone 0/20 - Working areas in which explosive atmospheres in the form of flammable gases, vapours or dust clouds (e.g. in gas tanks or grain silos) prevail predominantly.

Technical Details

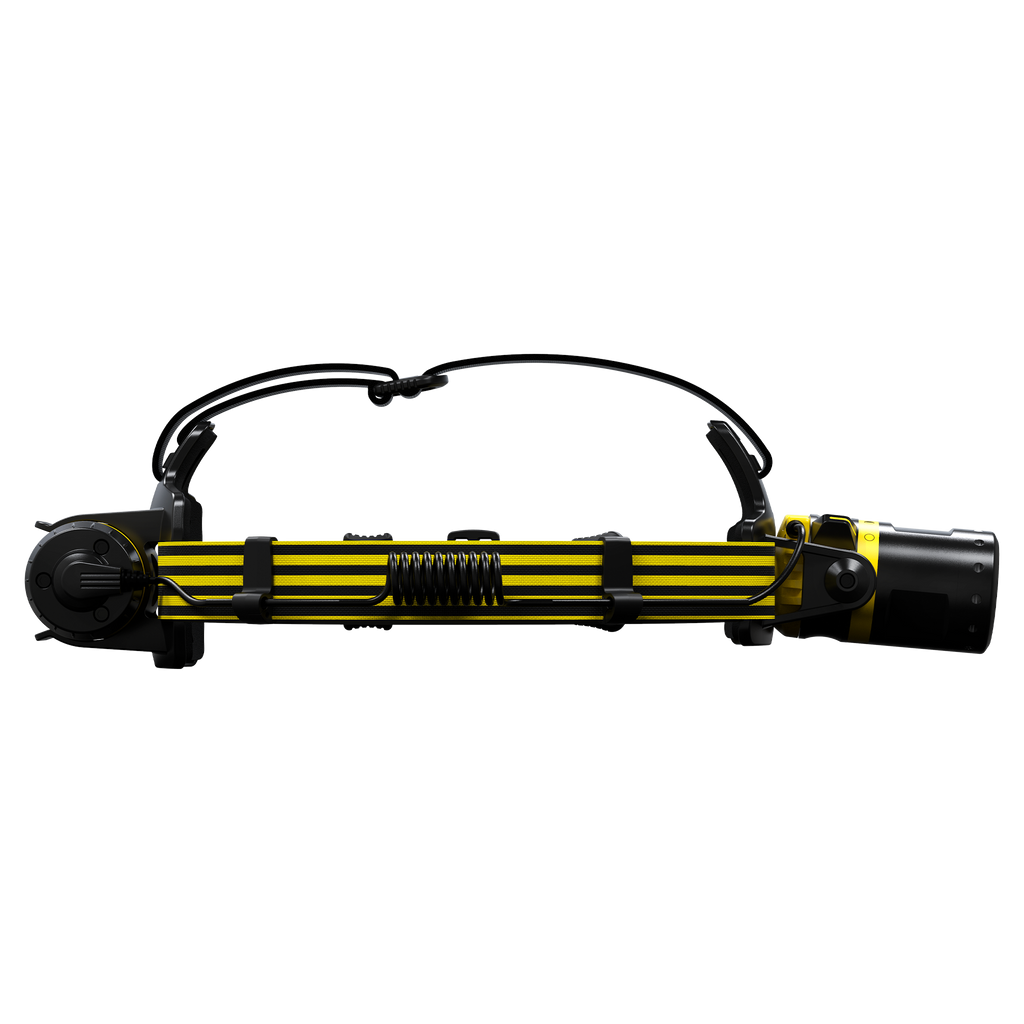

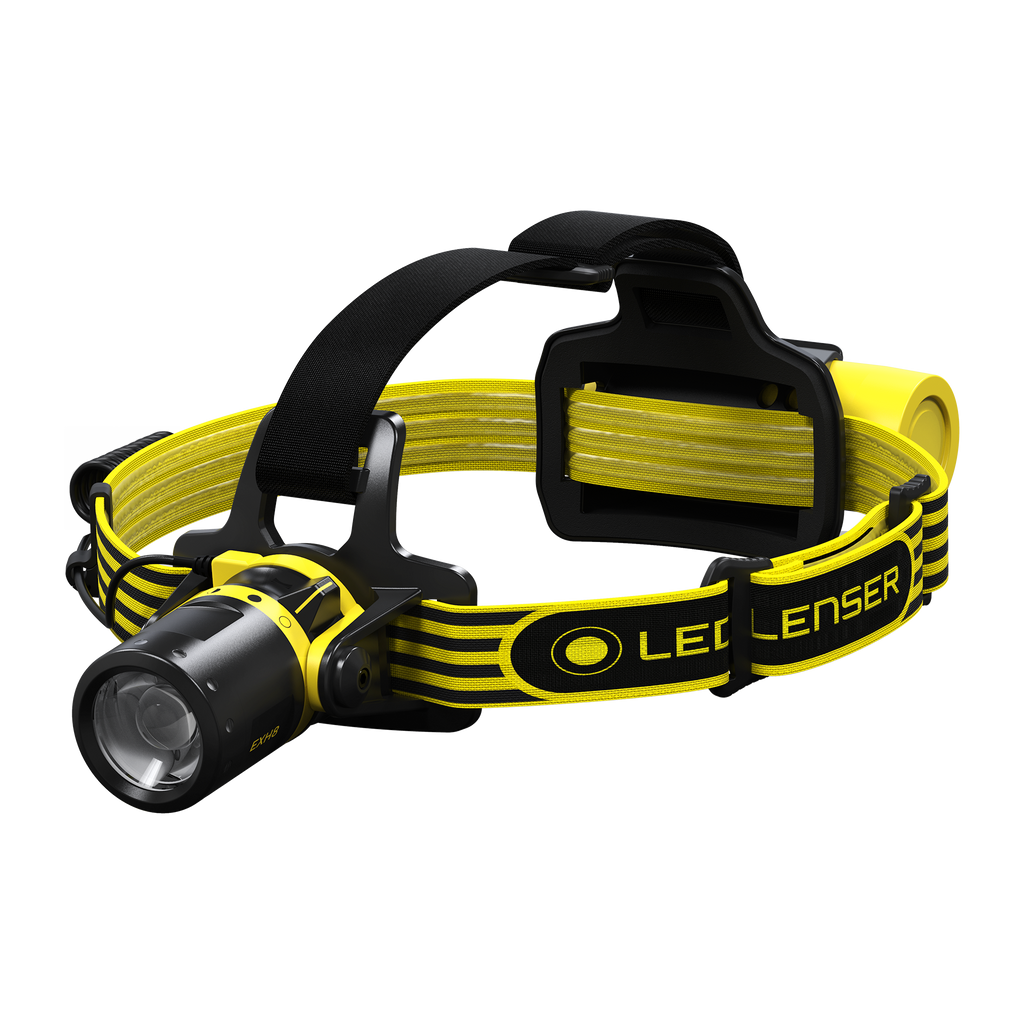

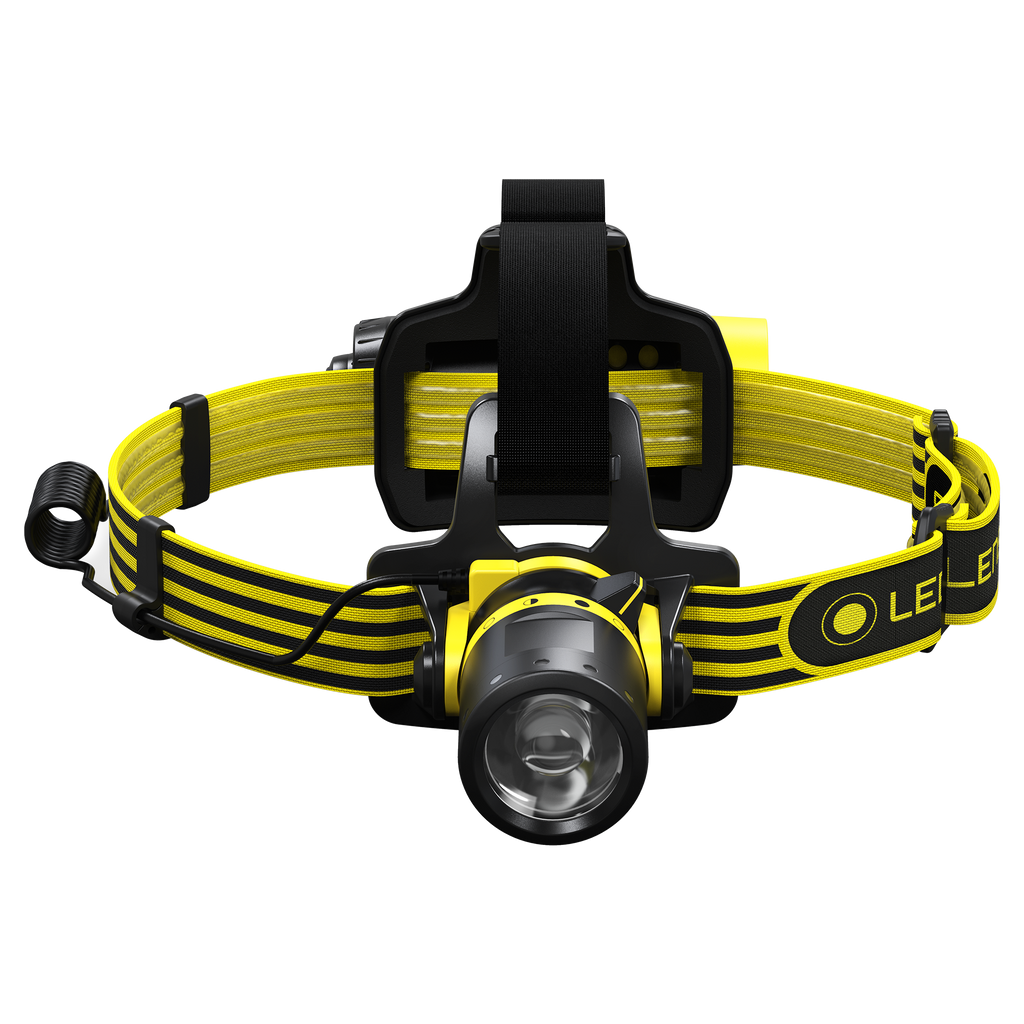

Ledlenser EXH8 Headlamp


  • LED Configuration
  • Luminosity1 MAX 180 lm - MIN 50 lm
  • Lighting Range1 MAX 120 m - MIN 65 m
  • Battery Duration1 MAX 40 h - MIN 15 h

Battery and Casing

  • Battery 3 x AA Alkaline Batteries
  • Water Resistance IP66
  • Rechargeable No

Height and Weight

  • Head Diameter 4.1 cm
  • Weight 345 g

Product Contents

Ledlenser EXH8 Headlamp

  • SKU: ZL501017
  • EAN: 4058205007412

In the box:

  • EXH8 Headlamp
