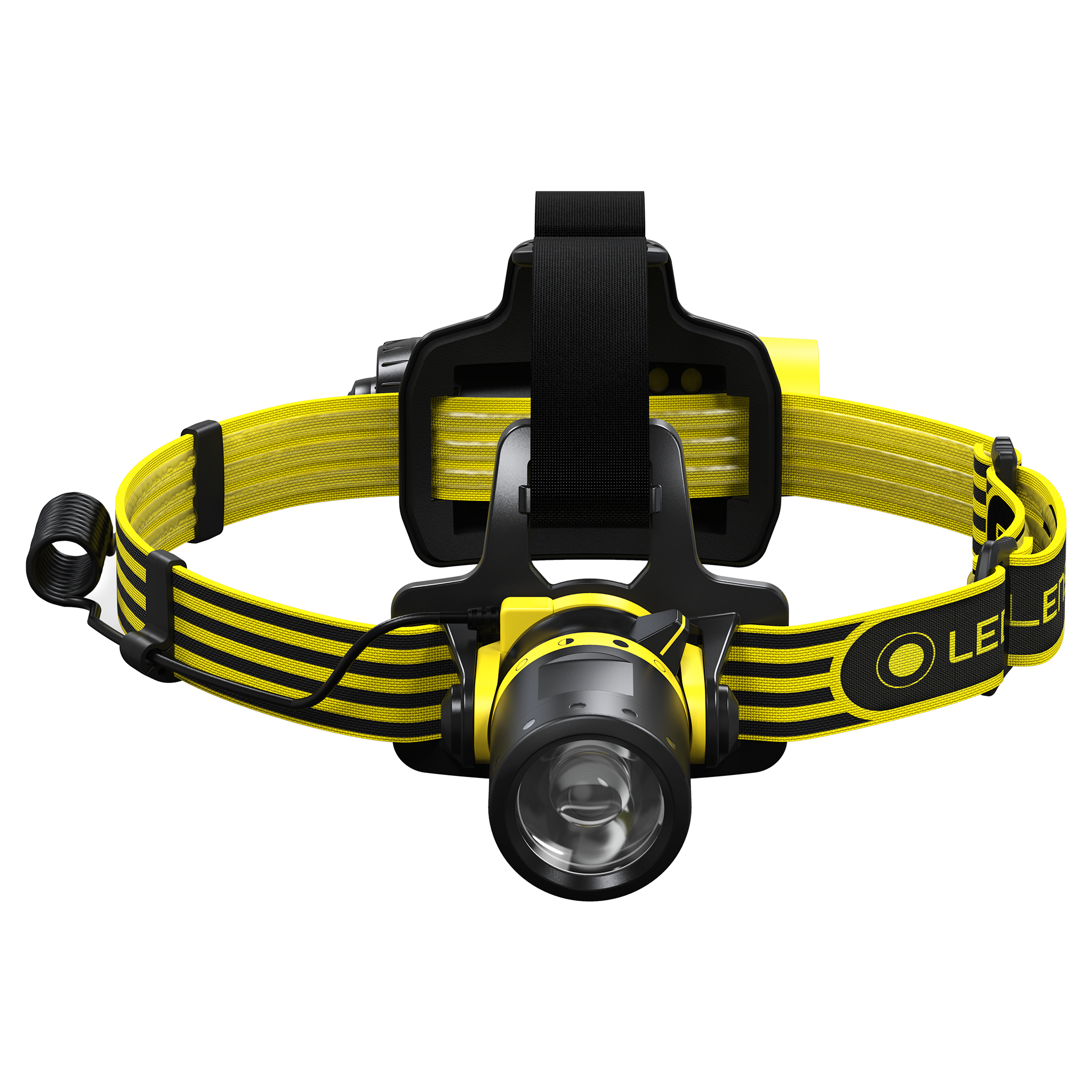

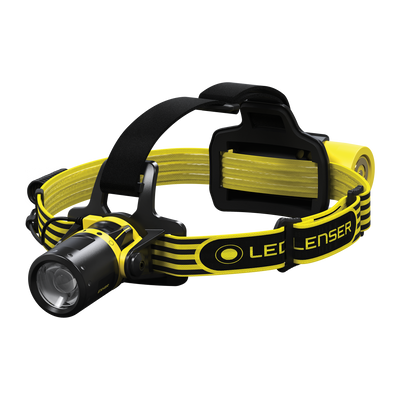

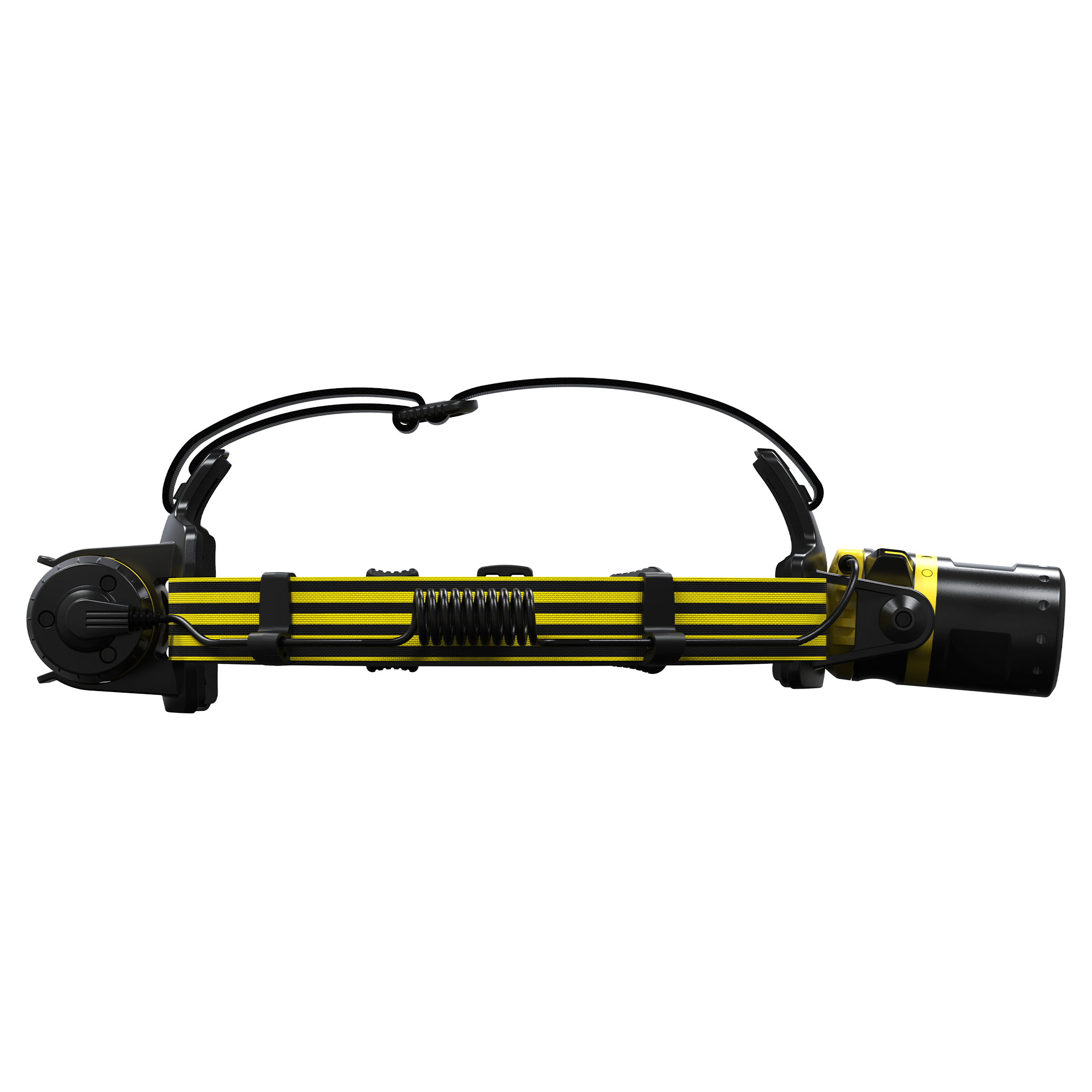

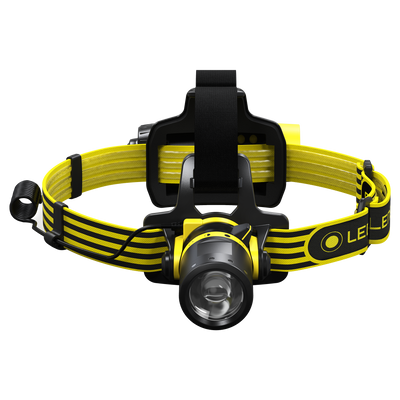

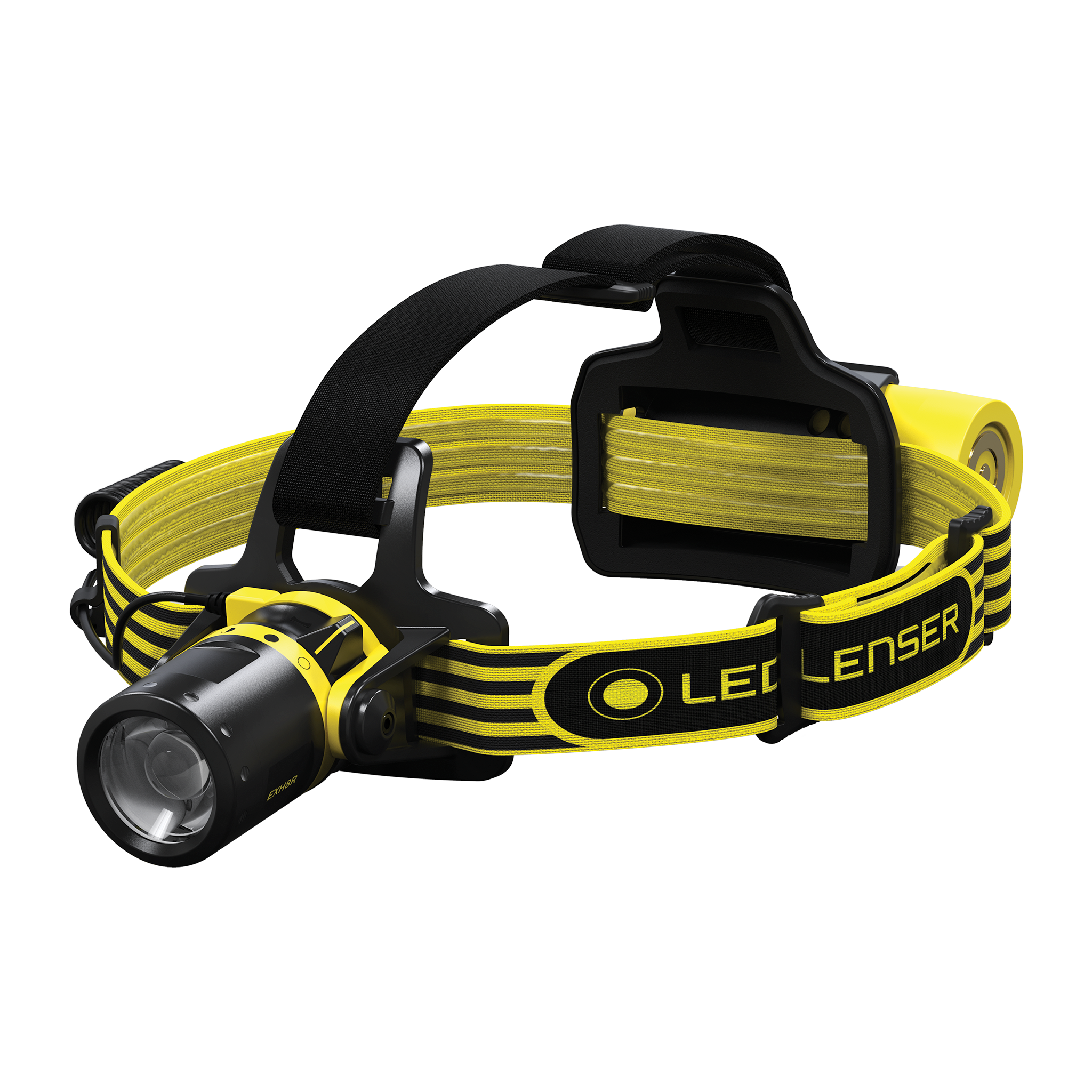

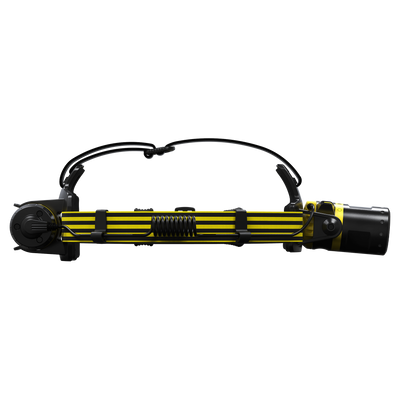

EXH8R Headlamp
II 2G Ex ib op is IIC T4 Gb
II 2D Ex ib op is IIIC T135°C Db
An adjustable & rechargeable hands-free light source for safety and specificity in highly flammable Ex-Zone 1/21 environments for those working around explosive gases, vapours and dust. This headlamp features the patented Advanced Focus System to customise the light beam and a red rear light for others to easily see your location. It has an extended battery life of up to 45 hours.
-
200 lm45 lm
-
130 m60 m
-
10 h45 h
Special Information
-
Light Functions
These settings are a pure, bright delight:
- Power - high light output for every situation
- Low Power - economical light for long battery life, glare-free reading and working
-
Switches
Turn, press or both - how to switch these Ledlensers on:
- Magnetic Switch - with two off positions for easy operation while wearing gloves and protective equipment
-
Special functions
That special something about this Ledlenser:
- Ex-Zone 1/21 Suitable - The first headlamp for Ex-Zone 1/21 areas with patented Advanced Focus System
- Rear Light - A red backlight so that you can also be seen from behind for added safety
- Adjustable, Washable Headband - With an anti-slip rubber grip
-
IP-Class
Safety features of this Ledlenser:
- IP66 - Dust-proof and protected against powerful water jets
-
Ex Rating
Ex and IECEx Compliant:
- Ex-Zone 1/21 - Working areas in which explosive atmospheres in the form of flammable gases, vapours or dust clouds prevail occasionally.
-
Rechargeable
By using rechargeable batteries, you're not just protecting your wallet, but also the environment. Regular batteries, after all, require up to 500 times more electricity to produce than they can release themselves. Combined with the energy consumption for transport and storage, the CO2 emissions are huge.
Technical Details
Ledlenser EXH8R Headlamp
LED
- LED Configuration
- Luminosity1 MAX 200 lm - MIN 45 lm
- Lighting Range1 MAX 130 m - MIN 60 m
- Battery Duration1 MAX 45 h - MIN 10 h
Battery and Casing
- Battery 1 x Li-ion Battery
- Water Resistance IP66
- Rechargeable Yes
Height and Weight
- Head Diameter 4.1 cm
- Weight 342 g
Product Contents

Ledlenser EXH8R Headlamp
- SKU: ZL501018
- EAN: 4058205007443

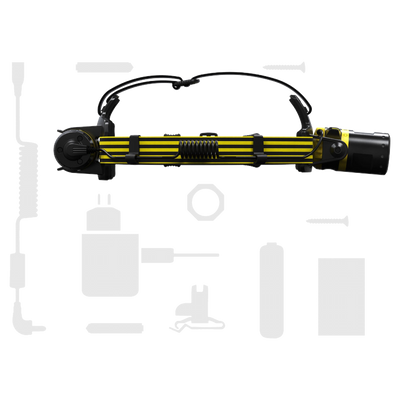

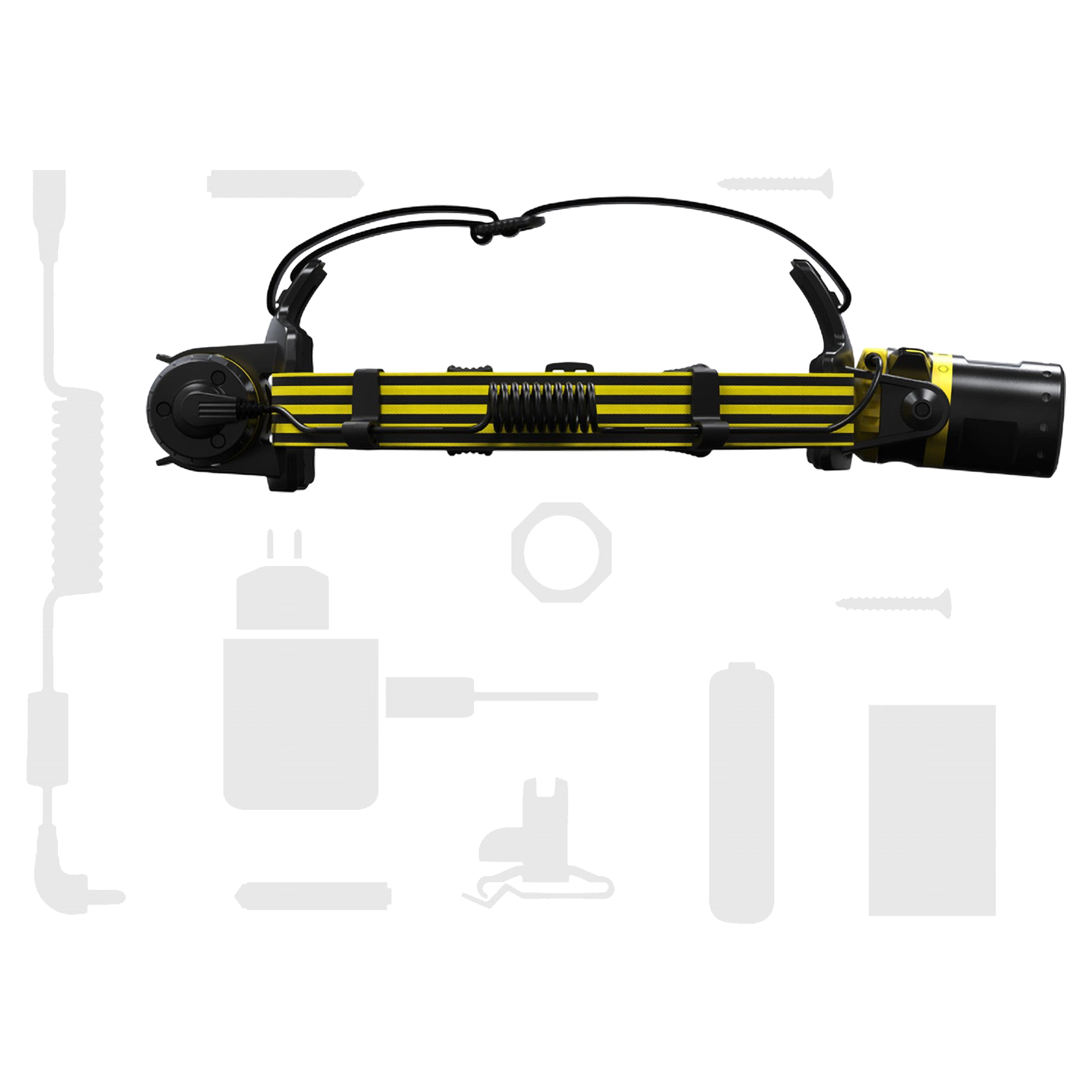

In the box:
- EXH8R Headlamp
